For most organizations the main benefit of deploying an Exchange Server 2010 Client Access Server array is to minimize downtime.
So when it comes time to update the CAS array members with patches, update rollups or service packs, the update process needs to be managed in a way that prevents all of the CAS array members from being offline at the same time.
Typically this means installing the updates to CAS array members one at a time, allowing each one to complete the update and (if necessary) reboot before updating the next member.
This tutorial demonstrates how to update a Client Access Server array without causing the entire array to go offline at once. For this tutorial Update Rollup 4 for Exchange Server 2010 RTM is being installed.
Preparing the NLB Cluster for Updates
The first step is to remove the server that is about to be updated from the Network Load Balancing (NLB) cluster.
There are two ways to take a CAS array member our of the NLB cluster:
- Issue a Stop command to the server
- Issue a Drainstop command to the server
The difference between the two is that Stop will immediately stop the server regardless of who is currently connected to it, while Drainstop will put the server in a state where it will not accept new connections but will continue serving existing connections until they disconnect.
For urgent updates a Stop command may be necessary, but for planned maintenance a Drainstop has the least potential impact on active client connections to the CAS array.

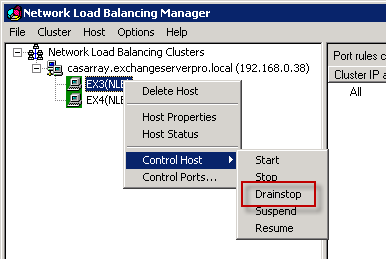

To issue a Drainstop launch Network Load Balancing Manager, right-click on the desired server, choose Control Host and then Drainstop.
When the server has no more active connections it will be in a stopped state.

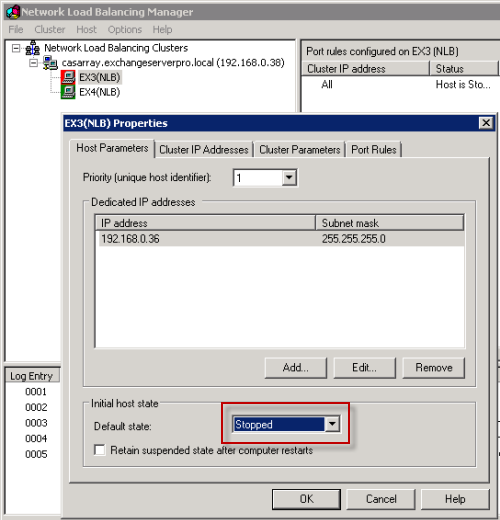

Right click the server and choose Properties. Set the default state of the server to Stopped. This will prevent it from automatically starting and accepting client connections after any reboots that the updates require, to allow you time to verify the updates were successful first before rejoining the NLB cluster.
Stop Conflicting Services
The Client Access Server role is often installed on the same server as the Hub Transport server role, even when deployed as a CAS array.
Hub Transport servers often run additional applications such as antivirus and anti-spam software that hooks into the Exchange Server services. These can cause conflicts with Exchange Server updates, for example if a third party application tries to automatically restart a service that it depends on that has been stopped by the update process.
Forefront is one example of this, so for servers running Forefront Protection for Exchange those services can be stopped using FSUtility.
C:\> fsutility /disable
Disabling Monitoring
If the CAS array members are monitored using SCOM or another system this should also be disabled, or placed into maintenance mode before the update is performed. This prevents unnecessary alarms in the monitoring system due to stopped services or server restarts, and also prevents the monitoring agent from trying to perform any automatic remediation such as restarting services.
Backing Up the Server
Some organizations will require an ad-hoc backup be run of at least one CAS array member before updates are applied. Others will be happy to rely on the latest scheduled backup instead. And some will even be satisfied that multiple CAS array members exist and so if a bad update puts one of them out of action there is no outage to end users, and the server can simply be manually reinstalled.
Updating the Server
Install the update following the procedure for that update type.
Update rollups come in the form of a .MSP file (Windows Installer Patch) that is applied to the server. Simply double-click the file or launch it from a command line window.
Service packs are a complete reissue of the Exchange Server setup files and are installed by running setup in upgrade mode, which can be run in either graphical or command line mode.
C:\> setup /m:upgrade

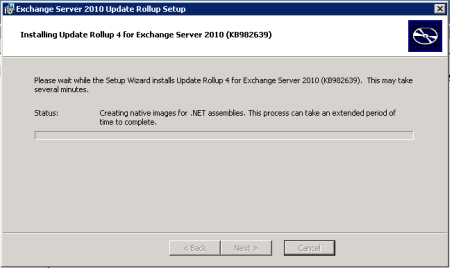

Both update rollups and service packs can take some time to install, so plan a large window of time for these updates.
Verifying the Update
After the update has completed, and if necessary the server rebooted, you should check the server’s health before placing it back into production in the CAS array.
Event Logs – look for error or warning events that have started since the update was applied.
Setup Logs – service packs write a complete setup log file to C:ExchangeSetupLogs
Services – check the Exchange services are running (or at least those that you expect to be running, some such as IMAP and POP will be stopped if you have not explicitly enabled them)
[PS] C:\>get-service *exchange* Status Name DisplayName ------ ---- ----------- Running MSExchangeAB Microsoft Exchange Address Book Running MSExchangeADTop... Microsoft Exchange Active Directory... Running MSExchangeAntis... Microsoft Exchange Anti-spam Update Running MSExchangeEdgeSync Microsoft Exchange EdgeSync Running MSExchangeFBA Microsoft Exchange Forms-Based Auth... Running MSExchangeFDS Microsoft Exchange File Distribution Stopped MSExchangeImap4 Microsoft Exchange IMAP4 Running MSExchangeMailb... Microsoft Exchange Mailbox Replication Stopped MSExchangeMonit... Microsoft Exchange Monitoring Stopped MSExchangePop3 Microsoft Exchange POP3 Running MSExchangeProte... Microsoft Exchange Protected Servic... Running MSExchangeRPC Microsoft Exchange RPC Client Access Running MSExchangeServi... Microsoft Exchange Service Host Running MSExchangeTrans... Microsoft Exchange Transport Running MSExchangeTrans... Microsoft Exchange Transport Log Se... Stopped msftesql-Exchange Microsoft Search (Exchange) Running vmickvpexchange Hyper-V Data Exchange Service
Returning the Server to Production
If the update was successful and the server healthy then it can be placed back into production.
Re-enable services such as Forefront Protection for Exchange.
C:\> fsutility /enable

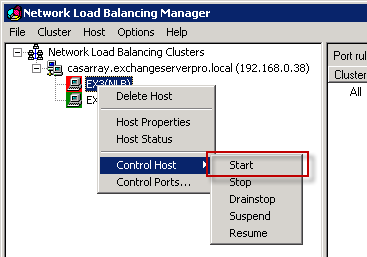

Start the server in the NLB cluster.
Set the NLB initial host state to Started.
And re-enable monitoring agents and alarms for the server.
After the first CAS array member has been successfully updated you can move on to the next one.
