Connect to the Graph in a Secure and Powerful Way
Updated: 1 August 2023
In a previous article, I discuss using cmdlets from the Microsoft Graph SDK for PowerShell to replace license management cmdlets from the Azure AD module in advance of their retirement on June 30, 2022 (update: Microsoft has moved this date out to March 2024). As it turns out, converting a couple of Azure AD cmdlets by replacing them with cmdlets like Get-MgUser and Set-MgUserLicense isn’t particularly difficult (if it was, I wouldn’t be able to do it). However, introducing a new module into the mix of PowerShell used in production environments always creates some questions and concerns, not least of which is security.
There’s a right and a wrong way to use the Graph SDK cmdlets in testing and production environments. In a nutshell, running the cmdlets interactively is straightforward, but could lead to a problem with an over-permissioned service principal (app). It’s all to do with the way the Graph SDK connects and the permissions it uses. Let’s examine why.
Read more: Microsoft Is Moving the Office 365 Service Communications API to the Graph
Connecting to the Graph SDK
The first step in any use of the Graph SDK is to connect to the Graph using the Connect-MgGraph cmdlet. When you run Connect-MgGraph to connect to the Graph, it’s wise to specify the identifier of the tenant to which you want to connect.
Connect-MgGraph -TenantId "828e1143-88e3-492b-bf82-24c4a47ada63"
If you don’t specify a tenant, Connect-MgGraph will choose the last tenant you signed into during a session (which might not be the one you want to connect to). I discovered this when I connected to the Graph and discovered that the data used belonged to my development tenant. I noticed then, but it’s possible that someone might miss this elsewhere, so make it a habit to connect with the tenant identifier.
A session lasts until you run Disconnect-MgGraph (see below) and can be reinitiated multiple times over days by running Connect-MgGraph. Behind the scenes, the Graph SDK keeps an encrypted token cache and will refresh the token as needed to allow you to work with Graph commands.
Permissions
After making a successful connection, the session signs in as your account. The permission scope for the connection comes from the service principal (enterprise app) registered in Azure AD for the SDK. If you’ve never signed in with the Graph SDK before, the SDK creates an enterprise app called Microsoft Graph Command Line Tools with an AppId of 14d82eec-204b-4c2f-b7e8-296a70dab67e and requests a limited set of permissions (Figure 1). If you’re an administrator, you can grant consent for these permissions on behalf of the organization. To ease the reasonable suspicions of vigilant administrators, it would be nice if the service principal showed up as verified, but that’s not currently the case.
The permissions consented for the Microsoft Graph PowerShell SDK are held by the enterprise app’s service principal.
Gathering New Permissions
As people begin executing Graph SDK commands using the interactive client, they will need consent for the permissions needed to run the commands. For example, to use the Get-MgUser cmdlet to retrieve a set of Azure AD accounts, a user needs permission to read directory information, so they might request the permissions using the Scope parameter when making the connect as follows:
$RequiredScopes = @("Directory.AccessAsUser.All", "Directory.ReadWrite.All")
Connect-MgGraph -Scopes $RequiredScopes

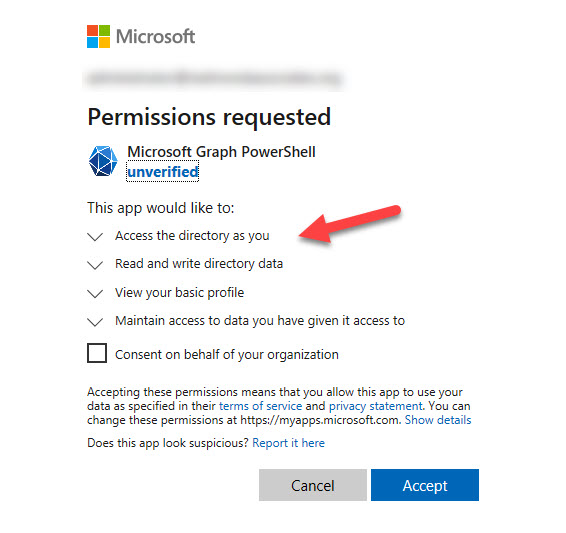

Connecting with a scope which includes permissions not held by the enterprise app causes Azure AD to prompt for consent for the permissions not inherited from the service principal (Figure 2).

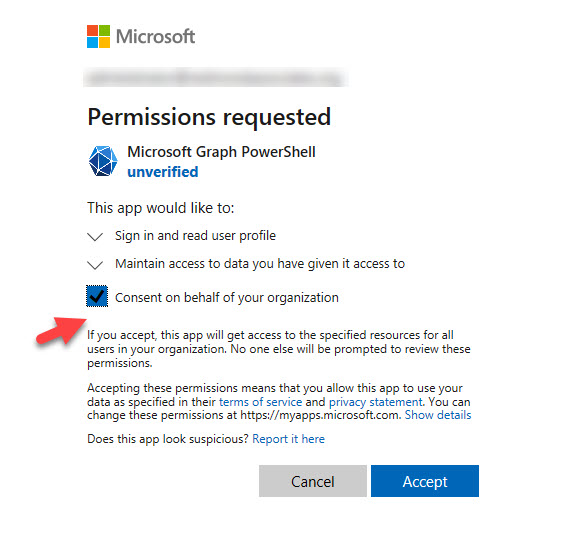

Like other apps which use the Graph APIs, an administrator consent to the requested permissions on behalf of the organization. This adds the extra permissions to the set held by the service principal. If an administrator does not grant consent, the requested permissions are available (subject to the administrative roles held by the signed-in account) for the session, but don’t join the set held by the service principal.
Over time, the permissions held by the SDK’s service principal will be those granted at the initial time of consent plus any other permissions granted subsequently as people work with the interactive client. In other words, the service principal collects aggregated permissions over time. For this reason, it’s not recommended to use the Graph SDK cmdlets interactively because if you do, over time a distinct possibility exists that the service principal will become very over-permissioned and therefore becomes a security risk. This is the kind of issue highlighted by App Governance for Cloud App Security (or in the home-grown solution explained in this article). In addition, you should pay attention to apps assigned high-priority permissions because they’re the ones that might be either planted or exploited by attackers.
The only resolution for an over-permissioned service principal is its removal and recreation, at which time an administrator can grant consent for limited permissions to the new service principal. Here’s how to remove the service principal using Graph SDK cmdlets (naturally):
$Sp = Get-MgServicePrincipal -Filter "AppId eq '14d82eec-204b-4c2f-b7e8-296a70dab67e'" Remove-MgServicePrincipal -ServicePrincipalId $Sp.Id
Connecting to the Beta Profile
In some situations, you’ll need to use the beta profile to have access to certain commands and data. This is equivalent to specifying the beta endpoint when issuing Graph API queries. To select the beta profile, run the Select-MgProfile cmdlet:
Select-MgProfile beta
Update: V2.0 of the Microsoft Graph PowerShell SDK removes the need for the Select-MgProfile cmdlet. Instead, the beta cmdlets are in a separate module.
Reporting Your Connection
To check that you’re connected to the right tenant with the right profile and permissions, we can extract information about the tenant with the Get-MgOrganization cmdlet, the current connection with the Get-MgContext cmdlet, and the profile used with the Get-MgProfile cmdlet and display some useful information:
$Details = Get-MgContext
$Scopes = $Details | Select -ExpandProperty Scopes
$Scopes = $Scopes -Join ", "
$OrgName = (Get-MgOrganization).DisplayName
CLS
Write-Host "Microsoft Graph Connection Information"
Write-Host "--------------------------------------"
Write-Host " "
Write-Host ("Connected to Tenant {0} ({1}) as account {2}" -f $Details.TenantId, $OrgName, $Details.Account)
Write-Host "+-------------------------------------------------------------------------------------------------------------------+"
Write-Host ("Profile set as {0}. The following permission scope is defined: {1}" -f $ProfileName, $Scopes)
Write-Host ""
Microsoft Graph Connection Information
--------------------------------------
Connected to Tenant a662313f-14fc-43a2-9a7a-d2e27f4f3475 (Office 365 for IT Pros) as account Global.Administrator@office365itpros.com
+-------------------------------------------------------------------------------------------------+
The following scopes are defined: Directory.AccessAsUser.All, Directory.ReadWrite.All, openid, profile, User.Read, email, Group.Read.All, Group.ReadWrite.All
The permissions listed above include those inherited from the service principal and any others requested by the user for the session.
Disconnect When You’re Done
When you’re finished interacting with the Graph, remember to close off the session by running Disconnect-MgGraph to sign the session out from the Graph. Disconnecting the session removes the encrypted token cache and prevents a session from being reinitialized.
Disconnect-MgGraph
App-Only Access for Production Use
The description above covers an interactive session. This is a good way to get to know the Graph SDK cmdlets and debug scripts in preparation for operational use. However, when you run SDK cmdlets interactively, you’re limited to delegate permissions. In other words, you can access items that you can interact with through Microsoft 365 apps, but you can’t access items owned by other users. For instance, you can read items in your mailbox but not in another mailbox. If you want to run the SDK with application permissions, you can do so with an app or in Azure Automation (using a RunAs account or managed identity).
Because of the issues with consent and the service principal, Microsoft recommends that operational scripts use registered Azure AD apps with certificate-based authentication (app-only access) or a managed identity. You can certainly write and test scripts using the interactive client, but once the code is complete, it’s time to run it using its own app with a tightly scoped permission set. This approach means that you can restrict the permissions assigned to apps to only the set needed by the processing done by the script and restrict those who can use the app to a selected set of accounts. The downside of using separate apps with scoped permissions is that over time you might accumulate many registered apps in Azure AD which need to be managed.
The alternative is to use Azure Automation with managed identities to run scripts that use SDK cmdlets. See this article for more information.
Some Issues for Microsoft to Solve
Having a service principal which diligently gathers permissions on an ongoing basis doesn’t seem to be a good idea. In fact, it’s a lousy idea. Microsoft needs to come up with a better way of allowing administrators to run Graph SDK cmdlets interactively without creating a security problem. Deleting the security principal when Disconnect-MgGraph is run one way to zeroize permissions, but it’s a poor solution. Allowing people to hard code usernames and passwords or use app secrets in scripts to authenticate access to the Graph is also not a direction to take given the current threat landscape.
The fact of the matter is that tenant administrators will forget about the permission accumulation issue unless they check service principals. It’s sad but true, and due to the demands of other work. People won’t run Disconnect-MgGraph either for the same reason as cmdlets like Disconnect-MicrosoftTeams and Disconnect-ExchangeOnline are ignored.
The Graph SDK is an excellent idea because it isolates PowerShell users from many of the complexities involved in using Graph APIs. It’s still a work in progress, but if Microsoft wants to make the Graph SDK a go-to tool for tenant administrators, they need to solve the permissions issue. And soon (before that deprecation deadline!)
