When you run Exchange on-premises servers, you can use the Exchange servers as an SMTP relay. The default Receive Connector can send messages to internal recipients and a dedicated Receive Connector can be created to relay messages to external recipients. I cover this topic in Exchange 2019 SMTP Relay Services.
When moving to Exchange Online, you must plan what to do about SMTP Relay. If you have one or more Exchange hybrid servers, you can continue using these on-premises servers to relay messages, but if the organization wants to decommission the on-premises servers, you must come up with a plan on how to handle SMTP relay. In this article, I explain the available options for SMTP relay when moving to Exchange Online.
SMTP Relay Options
In an Exchange Hybrid environment, one or more Exchange on-premises servers are active. These servers are used for management purposes. They can also be used for SMTP relay, so no action is needed at this point.
If the organization is moving to Exchange Online, multiple options exist for SMTP Relay:
- Install a dedicated SMTP server.
- Use authenticated SMTP in Exchange Online.
Installing a Dedicated SMTP Server
Installing a dedicated SMTP server is the easiest solution. Any operating system that supports an SMTP server can be used. For this article, I use a Windows 2022 server with the IIS SMTP service installed. Be aware that there has not been any development in the SMTP stack since Windows Server 2012 and that the SMTP stack itself is not supported.
The easiest way to install the SMTP server and its management tools is with PowerShell. For test purposes, install the telnet client as well. Use the following PowerShell command to install the SMTP server on a Windows server:
Install-WindowsFeature -Name SMTP-Server,Telnet-Client -IncludeAllSubFeature -IncludeManagementTools -Restart
When installed, use the Services MMC snap-in to change the startup mode of the SMTP service from manual to automatic. If you run into issues with a crashing MMC snap-in for the SMTP service, this can be quickly solved by editing the IIS MetaBase.xml file.
Unfortunately, it is not possible to configure the SMTP server using PowerShell, so the Internet Information Server (IIS) 6.0 manager must be used. Open the IIS 6.0 manager to configure the SMTP server and navigate to the SMTP virtual server. Open the server properties and configure the following settings:
- Enable logging
- Connection control, who can access this SMTP server
- Relay restrictions, who can relay through this SMTP server
- Outbound Security, for setting TLS encryption
- Advanced delivery, for setting a smarthost when needed.

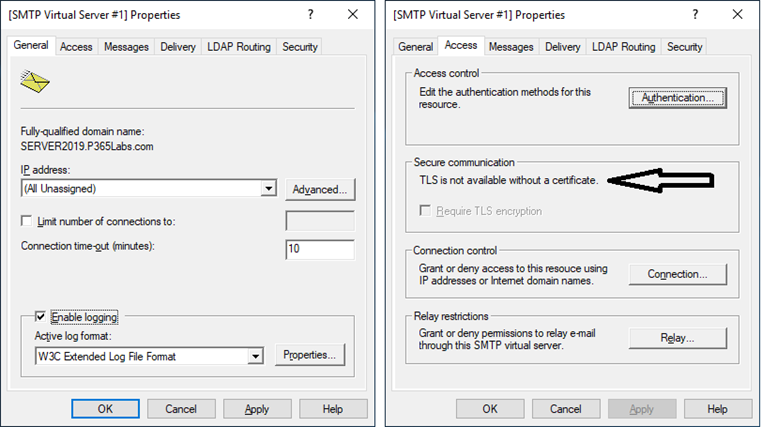

On the Access Page (Figure 1), you can see that TLS is not available on this server.
Out of the box, no certificate is installed on a Windows SMTP server. You can use the Internet Information Server Manager MMC snap-in to create a self-signed certificate. Open the IIS Manager, select the server, and in the actions pane select the Create Self-Signed Certificate option and follow the wizard to create a self-signed certificate. When running the wizard, make sure you select ‘personal’ to store the certificate and not ‘webhosting.’ When the latter is selected, the SMTP service cannot access the certificate. When finished, open the SMTP virtual service properties again and check the Require TLS encryption checkbox. Of course, you can also use a valid 3rd party certificate with the FQDN as its common name. This is what I used for this article.
You can now configure your device or application to use this SMTP server to relay messages to external recipients, providing of course that the IP address of the device or server is added to the allowed list on the SMTP server.

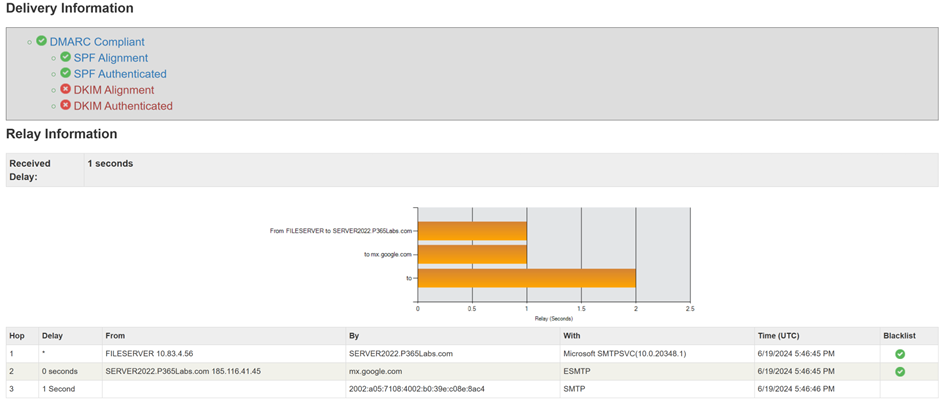

After sending a message from a device, in my example from a Synology NAS in my office to a Gmail mailbox, check the headers of the email to validate that it is relayed through the SMTP server and that the connection to Gmail uses TLS. This is shown in Figure 2.
When examining the header information, you can see that the SPF alignment is good. The public IP address of the NAS device is added to the domain’s SPF record. There’s no DKIM signing option in the Windows SMTP service and there’s no open source module available for this. Using a smarthost instead of direct delivery is a better solution.

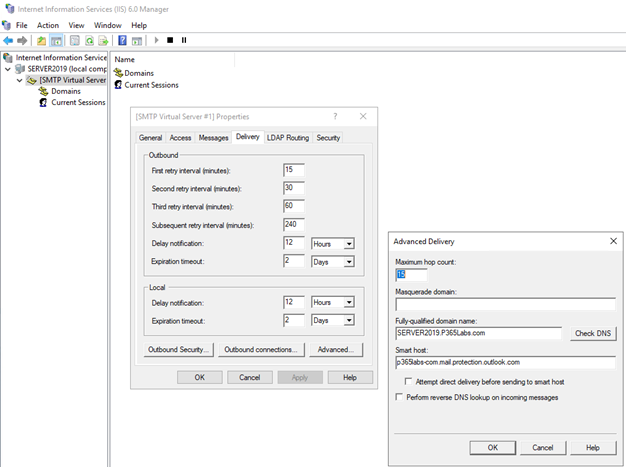

To configure a smarthost in the SMTP service in Windows, open the IIS 6.0 Manager MMC snap-in, open the properties of the SMTP Virtual Server and navigate to Delivery, then Advanced, and enter the smarthost in the correct textbox. This is shown in Figure 3.
The smarthost you must use is in the form or <yourdomain-tld>.mail.protection.outlook.com.
This configuration won’t work out of the box because the inbound connection to Exchange Online is not authenticated and thus is not allowed to relay messages. To fix the problem, create a new inbound connector in the Exchange Online admin center and set the connection to be from ‘your organization’s email server’ or ‘partner organization.’ Make sure that the inbound connector is secured by your public IP address.

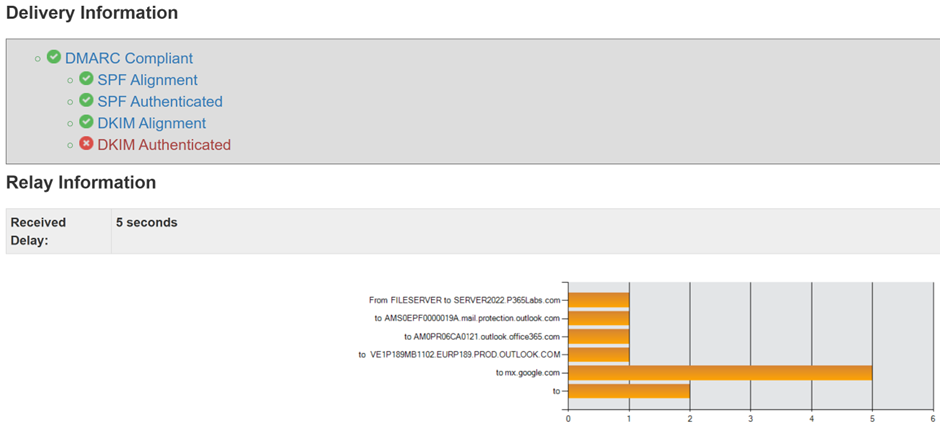

With the configuration in place, when I send a message from the device in my office to Gmail, it is relayed through the Windows 2019 server via Exchange Online to the Gmail account. When checking the header information of the message, I can see confirmation of the correct mail flow and that the message passed the SPF and DKIM check (Figure 4). The ‘DKIM Authenticated’ error is caused by a copy-and-paste error in the MXTOOLBOX tool, which is a known issue.
Move SMTP Relay to Exchange Online (SMTP AUTH submission)
Instead of installing, configuring, and maintaining a dedicated SMTP server, it is also possible to relay SMTP messages directly via Exchange Online. In this scenario, the device signs into an Exchange Online mailbox to send email messages, both internal and external.
To do this, you must configure your device or application using the properties as shown in Table 1.
Device setting | Value |
smarthost | Smtp.office365.com |
port | 25 or 587 (recommended) |
TLS/STARTTLS | Enabled |
Username/password | Credentials of Exchange Online mailbox |
There are some things you should be aware of when using SMTP AUTH client submission:
- Microsoft is planning to remove basic authentication with client submission (SMTP AUTH) in September 2025. More information can be found here. Keep in mind that Microsoft does not have a good track record when it comes to planning the removal of features.
- An Exchange Online mailbox must be used. This mailbox can have the lowest-cost license available, like an Exchange Online P1 license.
- Make sure the mailbox is not secured by MFA.
- The device or application must support TLS/STARTTLS.
- Authenticated client SMTP submission must be enabled. This can be enabled on a tenant level or on a mailbox level. For more information on how to do this please check out this Microsoft post.

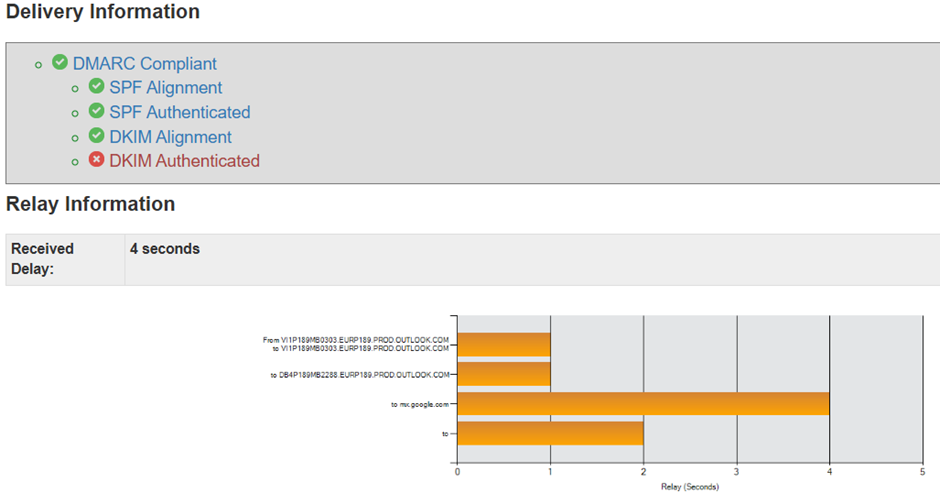

When SMTP AUTH is configured and a testmail is sent, the headers of the email can be analyzed to check the mail flow. This is shown in Figure 5.
As with the SMTP Relay through Exchange Online, the SPF check and DKIM check passes and the message is delivered successfully to the Gmail mailbox.
Weighing the Options
When moving to Exchange Online and decommissioning on-premises Exchange servers, you must have a solution for SMTP relaying from applications or devices.
In this article, I explained three possible solutions:
- Relay through a dedicated SMTP server with direct delivery.
- Relay through a dedicated SMTP server using Exchange Online as a smarthost.
- Relay through Exchange Online using SMTP client submission.
The first option just works, as long as the receiving mailserver does not perform a DKIM check. The second option is better since it uses the security features of Exchange Online. A dedicated SMTP server on-premises is used, but all the devices and applications in your organization are centralized in this SMTP server. In this article I used the SMTP stack in Windows 2022, this works fine but the SMTP stack in itself is not supported. However, you can also use another SMTP server for this, like a Postfix server for example.
The third option is to not use an SMTP server, but all applications and devices need to be configured with SMTP Submission credentials. This configuration must be maintained to ensure that mailboxes can continue to send email.
Not mentioned in this article are the new Microsoft High Volume Email solution (HVE) and the Azure Communication Services (ACS). The first one is still in public preview (did you notice this uses basic authentication as well?) and the second one is a paid service. These might well be topics for a future blog.
